CMFJ-6

CMFJ-6

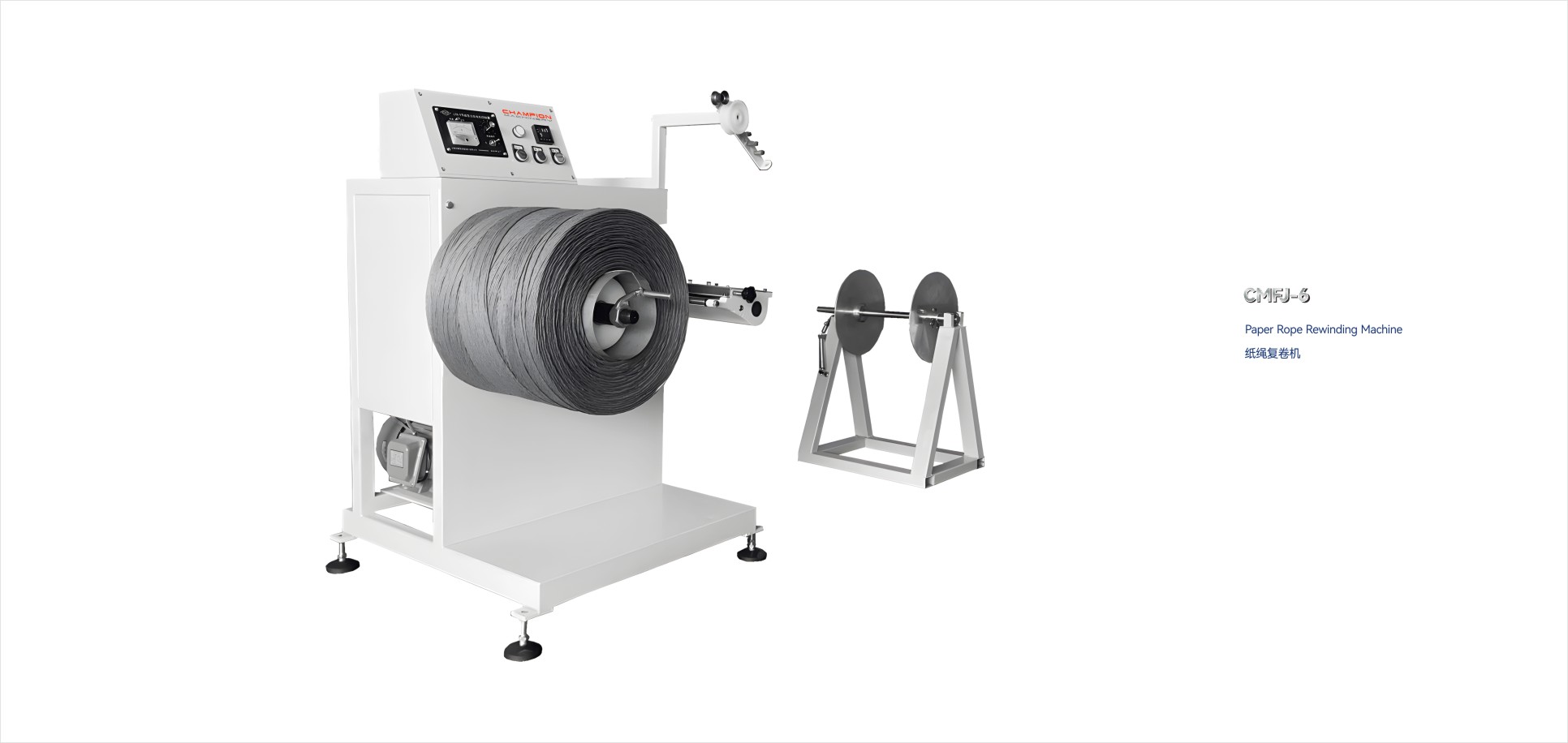

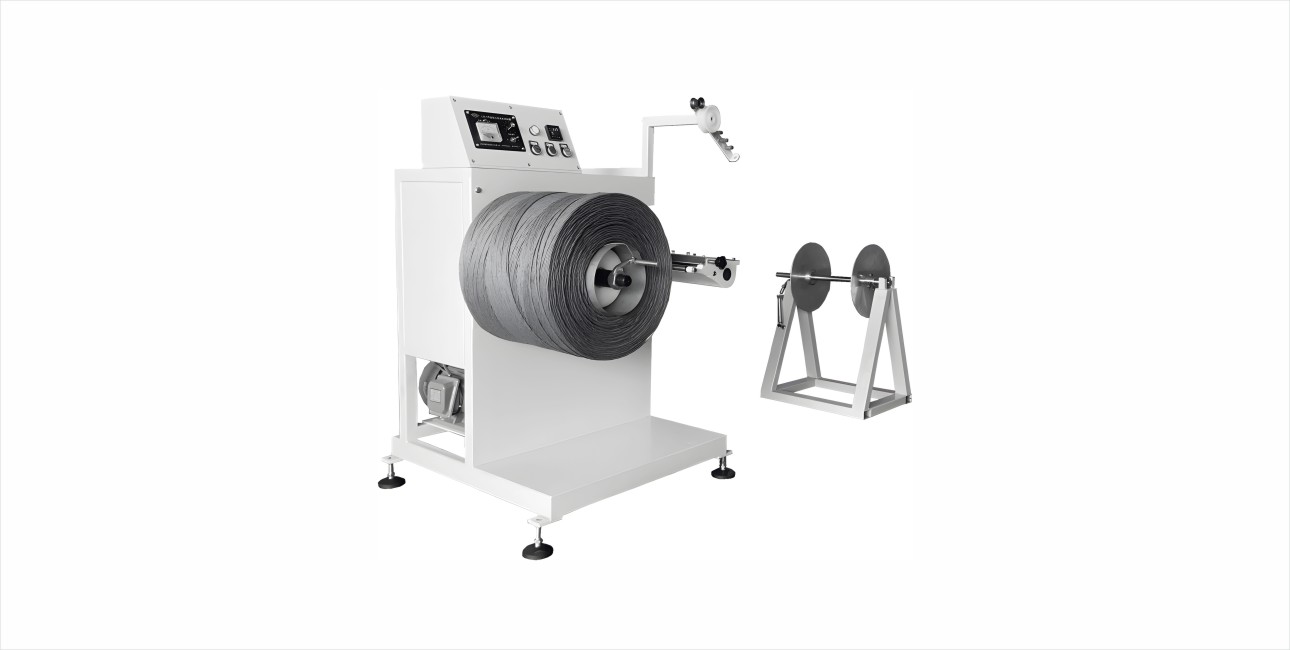

Paper Rope Rewinding Machine

Machine Description

This machine is mainly used with paper rope machine, using paperrope reel of paper rope machine as raw material. Through the high-speed rotation of the machine shaft, the paper rope is quicklyreleased at one end and rewind at the other end. lt can not onlyexpand the extemal diameter of the final paper rope reel and theinner diameter of the center of the paper rope reel, but alsoeliminate the possible knotting phenomenon in the onginal paperrope reel. Therefore,it is ensured that the paper rope greatlyimproves the production efficiency and quality in the subsequentproduction.This machine has an automatic counting funclion, which canaccurately stop at the set number of meters, and is simple tooperate. The speed can reach 140m/min.The cost is greatly saved inmanagement and labor.

Core Diameter of Raw Rope reel  φ76 mm Power Requirements 380V
Core Diameter of Final Rope reel φ180mm Total Powe 2.2KW
Final Rope Reel Diameter φ400-600mm Total Weight Approx.150KG
Max.Production Speed 80-150M/min Overall Dimension L1050*W800*H1200mm
